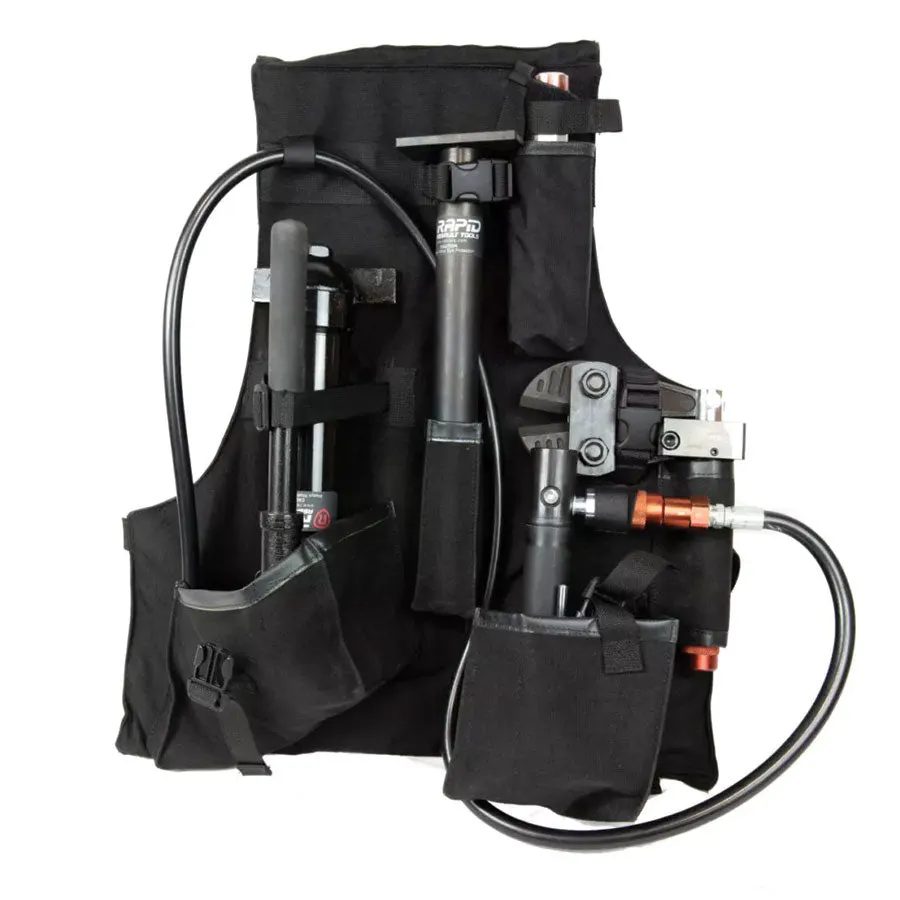

Highly portable and effective hydraulic breaching toolkit in a custom made backpack. Quick disconnect fittings allow operator to switch tools depending on mission. Door pusher, jamb spreader, bolt cutter, and hydraulic wedge can all be powered easily and quietly from pump. US made pack has padded shoulder and waist straps for ultimate mobility.

Kit Options

2 in 1 RatSpreader with Two Stage Pump in Backpack

Hydraulic door pusher/jamb spreader, hydraulic bolt cutter, 3 Ton Spreading Wedge, and pump all carried in black carry-bag. User can quickly swap tools using the quick attach hose couplers. 6 ft. long hose connects to included dual stage 10,000 psi hand or foot operated hydraulic pump, allowing complete hands free operation. Includes heavy duty hard bottom carry-bag. Finish is tactical black and weighs 36 lbs.

2 in 1 RatSpreader with Two Stage Pump and HBC in Backpack

Hydraulic door pusher/jamb spreader, hydraulic bolt cutter and pump all carried in backpack. User can quickly swap tools using the quick attach hose couplers. 6 ft. long hose connects to included dual stage 10,000 psi. hand or foot operated hydraulic pump allowing complete hands free operation all carried in a custom designed backpack. Finish is tactical black and weighs 31 lbs.

2 in 1 RatSpreader with Pump HBC and 4" RatWedge in Backpack

Hydraulic door pusher/jamb spreader, hydraulic bolt cutter, 3 ton spreading wedge and pump all carried in backpack. User can quickly swap tools using the quick attach hose couplers. 6 ft. long hose connects to included dual stage 10,000 psi. hand or foot operated hydraulic pump allowing complete hands free operation all carried in a custom designed backpack. Finish is tactical black and weighs 36 lbs.

Kit Includes

• 4 inch (102mm) stroke
• 10,000 lbs. (44kN) of force
• Includes quick coupler
• Working Pressure: 10,000psi (690 bar)
• Weight: 7 lbs. (3.2Kg)
• Dimensions: 10 inch x 5 inch x 3 inch (254mm x 127mm x 76mm)

• Screws onto end of HDP4 to create jamb spreader
• For use on jambs between 26 inches and 41 inches (66 cm and 104cm)
• 10,000 lbs. (44kN) of force
• Working Pressure: 10,000psi (690 bar)
• Weight: 6 lbs. (2.7Kg)

•  Suitable for cutting mild steel and other materials that are non-heat treated with hardness less than HRB80
•  Drop-Forged steel alloy cutting jaws. Jaw opening at tip: 0.75 inch (19mm)
•  Cutting capacity: .5 inch (14 mm) diameter less than HRB80 Hardness HRC 20
•  24,000 lbs. of cutting force
•  Dimensions: 9 inch x 6 inch x 2 inch (230 mm x 155 mm x 50mm)
• Single acting steel cylinder with quick coupler
• Working Pressure: 10,000psi
• Weight: 6 lbs. (2.7 Kg)

• Rated Load: 1 tons (2,000lbs) at blade tips
• Closed arm height: .5 inch (12.7 mm)
• Extended blade height: 3.34 inch (8.48 cm)
• Arm Width: 2.25 inch (5.71 cm)
• Length: 6.5 inch (16.51 cm)
• Working Pressure: 8,000psi (551 bar)
• Weight: 4.5 lbs (2.04 Kg)
