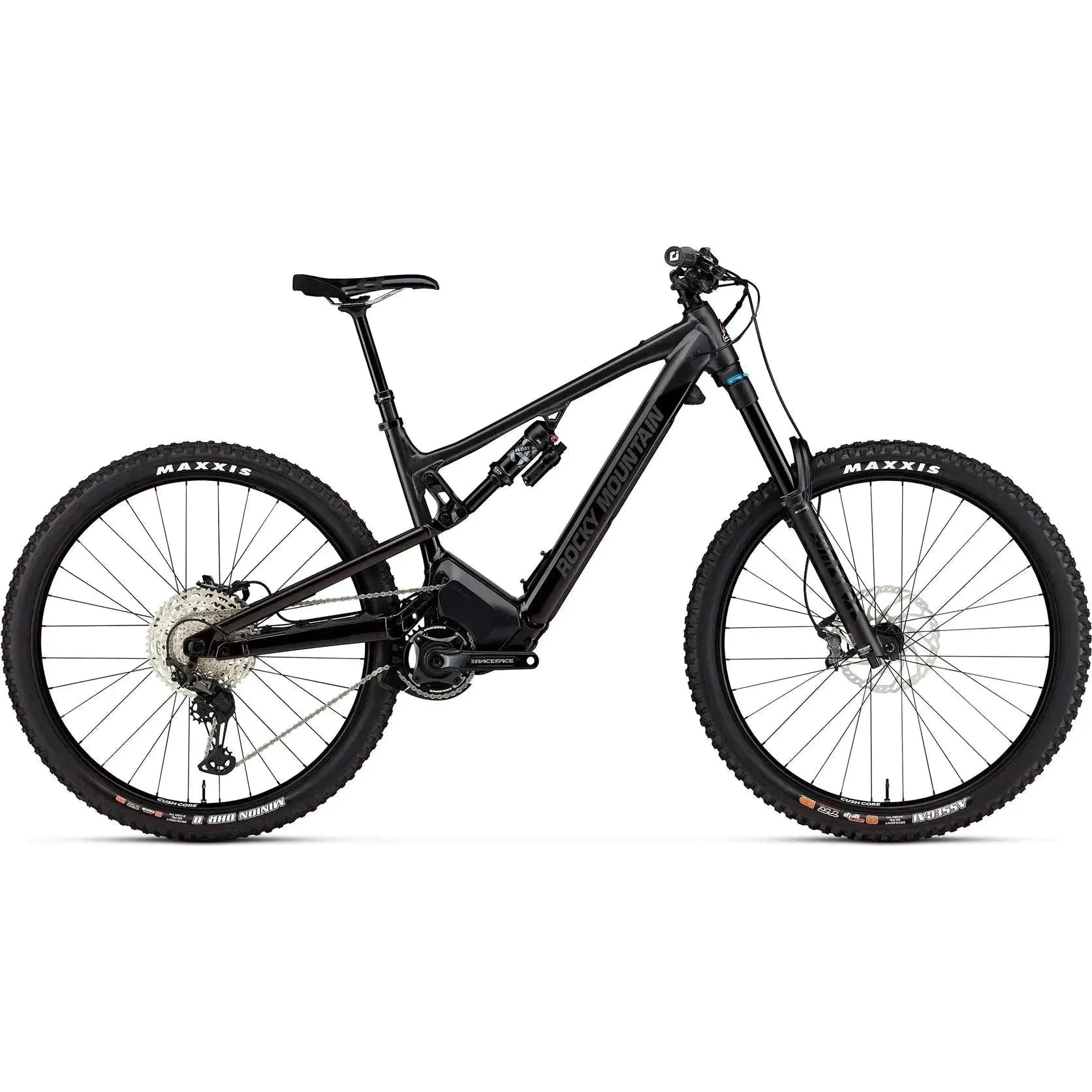

Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking. The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability.
| Frame | FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry Suspension Rate | 160mm Travel. FORM™ Alloy Rear Triangle |
| Fork | Fox 38 Float EVOL GRIP Performance Series 170mm | 44mm Offset |
| Front Travel | 170 |
| Shock | Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ |
| Rear Travel | 160 |
| Headset | FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Bottom Bracket | Shimano SM-BBMT500 |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Front Hub | Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub | DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet |
| Spokes | F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0 |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
| Seatpost | X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm |
| Saddle | WTB Volt Race 142 |
| Drive System | Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A) |
| Remote | Rocky Mountain Micro Remote |
| Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
| Weight | 54.296|24.68 KGS |
